ScatterPlotAnalyzer - Circuit Session - Lime Rock MX-5

Generic scatter plot for correlations between telemetry channels

Sample Data

Attribute	Value
Source	garage61
Category	circuit_lap
File	01K451BYJ64G0T2GPQ44AKXC86

Available Channels: LongAccel, VertAccel, YawRate, abs_active, brake, clutch, drs_active, gear, lap_distance_pct, lat_accel, latitude, longitude, position_type, rpm, speed, speed_kph, speed_mph, steering, throttle, time, track_pct, yaw

---

Configuration

Setting	Value
Slice Type	N/A
Metadata Only	False

---

When to Use

• User wants to analyze correlation between two metrics

---

Key Options

Option	Description
x_column	X-axis column
y_column	Y-axis column

---

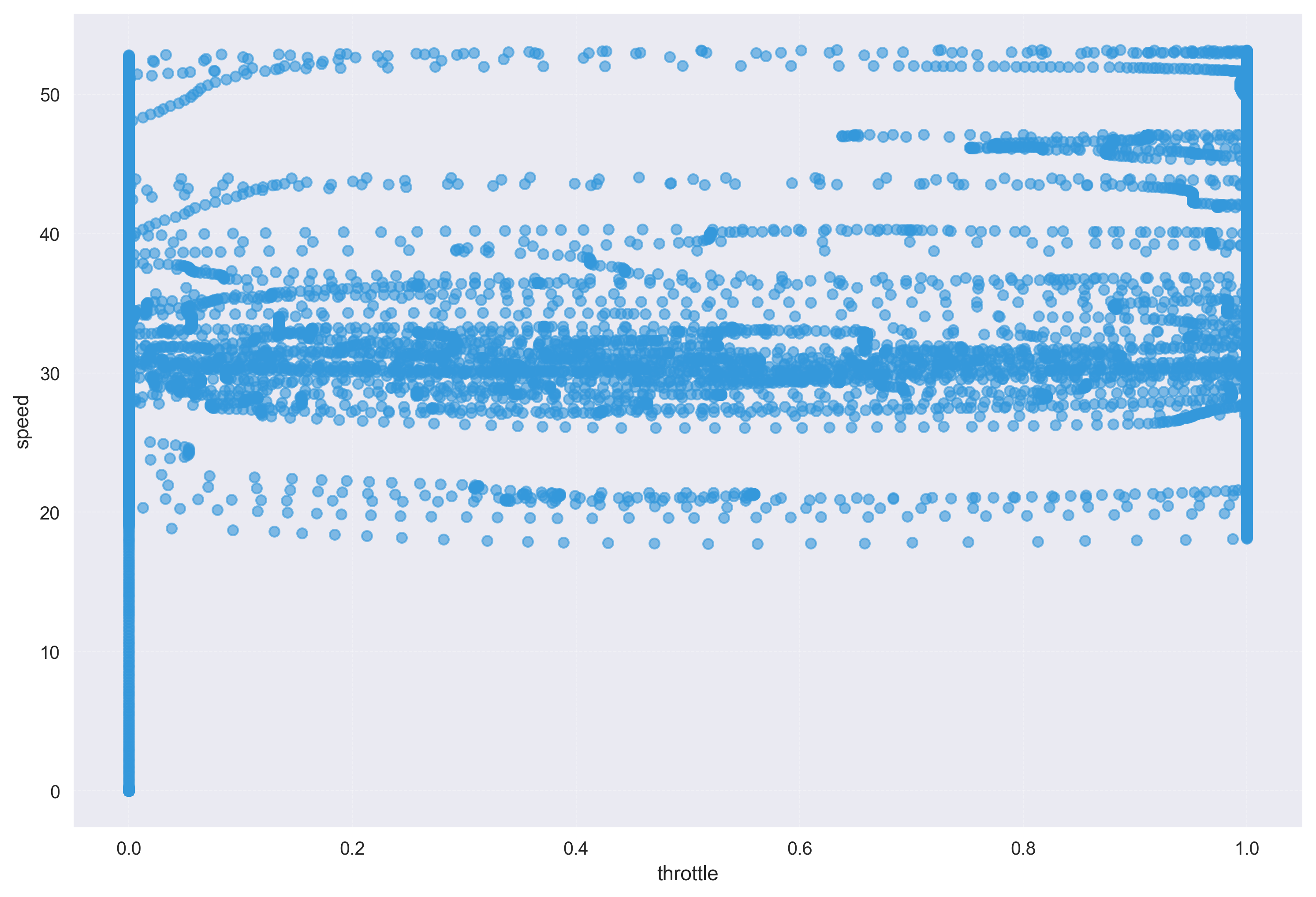

Sample Output

Subjects Analyzed: 1

Default

{
  "analyzer_name": "scatter_plot",
  "data": {},
  "metadata": {
    "format": "png",
    "dpi": 300,
    "figsize": [
      12,
      8
    ],
    "subject_count": 1
  },
  "artifacts": {
    "scatter_plot": "/Users/mhild/src/durandom/racing/b4racing/apps/docs/docs/analyzers/samples/graphics/scatter_plot_01K451BYJ64G0T2GPQ44AKXC86.png"
  }
}

---

Example Calls

No examples documented.

---

Generated from b4racing.analysis.graphics.scatter.ScatterPlotAnalyzer
