TrackHeatmapAnalyzer - Circuit Session - Lime Rock MX-5

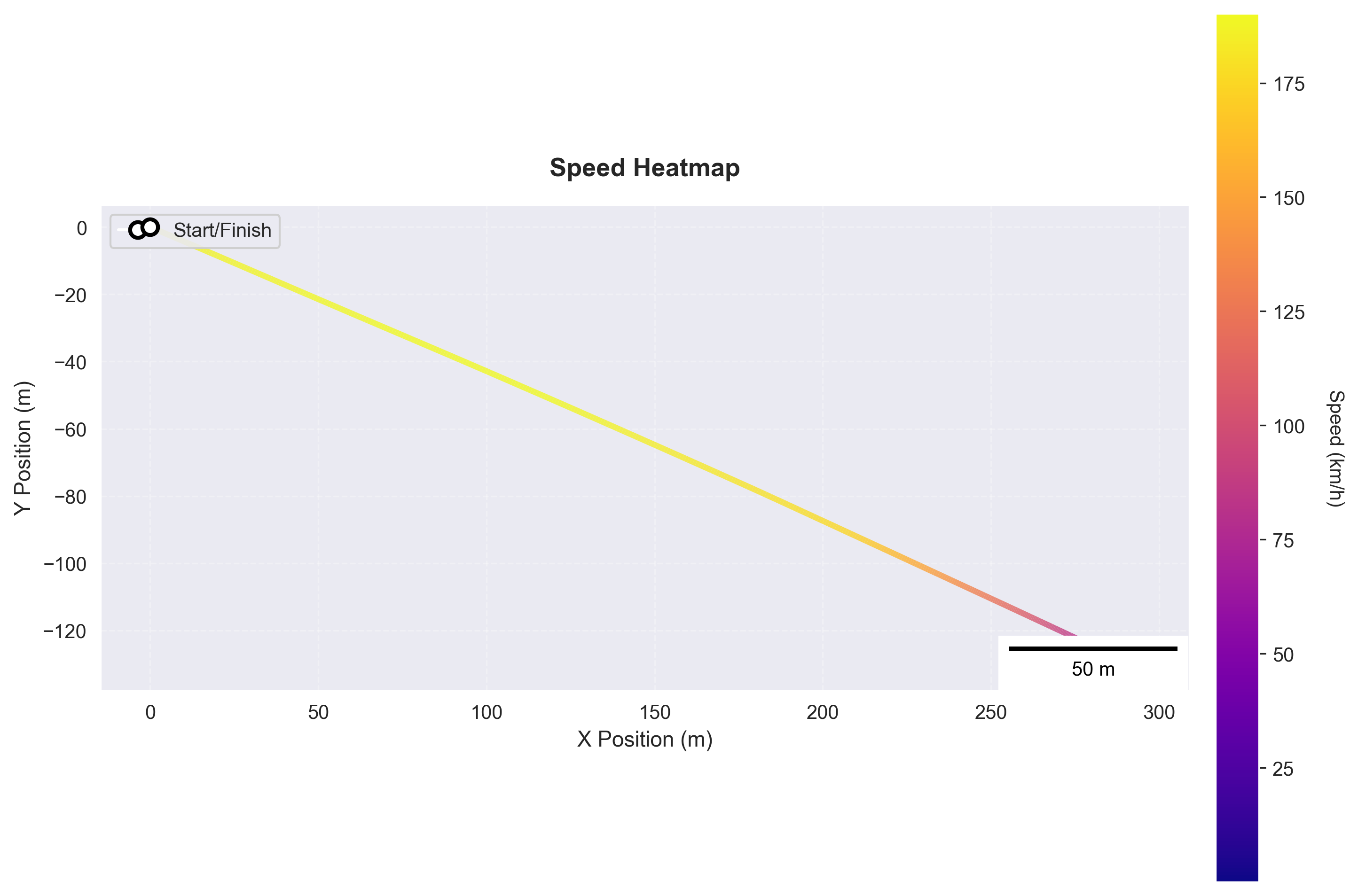

Track heatmap showing speed or other metrics overlaid on track layout

Sample Data

Attribute	Value
Source	garage61
Category	circuit_lap
File	01K451BYJ64G0T2GPQ44AKXC86

Available Channels: LongAccel, VertAccel, YawRate, abs_active, brake, clutch, drs_active, gear, lap_distance_pct, lat_accel, latitude, longitude, position_type, rpm, speed, speed_kph, speed_mph, steering, throttle, time, track_pct, yaw

---

Configuration

Setting	Value
Slice Type	N/A
Metadata Only	False

---

When to Use

• User asks 'where on track am I fastest/slowest'
• User wants visual speed map of the circuit
• User wants to see racing line colored by performance metric
• User asks to visualize throttle or brake application on track

---

Key Options

Option	Description
lap_selection	best
value_column	speed
colormap	viridis
speed_unit	kph

---

Sample Output

Subjects Analyzed: 1

Default

{
  "analyzer_name": "track_heatmap",
  "data": {},
  "metadata": {
    "format": "png",
    "dpi": 300,
    "figsize": [
      12,
      8
    ],
    "subject_count": 1
  },
  "artifacts": {
    "track_heatmap": "graphics/track_heatmap_01K451BYJ64G0T2GPQ44AKXC86.png"
  }
}

---

Example Calls

Show me where on track I'm fastest and slowest

analyze(analyzers='track_heatmap', event='01H8SP4HK4', lap_selection='best', value_column='speed')

Creates speed heatmap of best lap with color from slow (blue/purple) to fast (yellow/red)

Visualize my throttle application on the track

analyze(analyzers='track_heatmap', event='01H8SP4HK4', value_column='throttle', colormap='viridis')

Shows throttle position (0-100%) overlaid on track layout

---

Generated from b4racing.analysis.graphics.track_heatmap.TrackHeatmapAnalyzer
